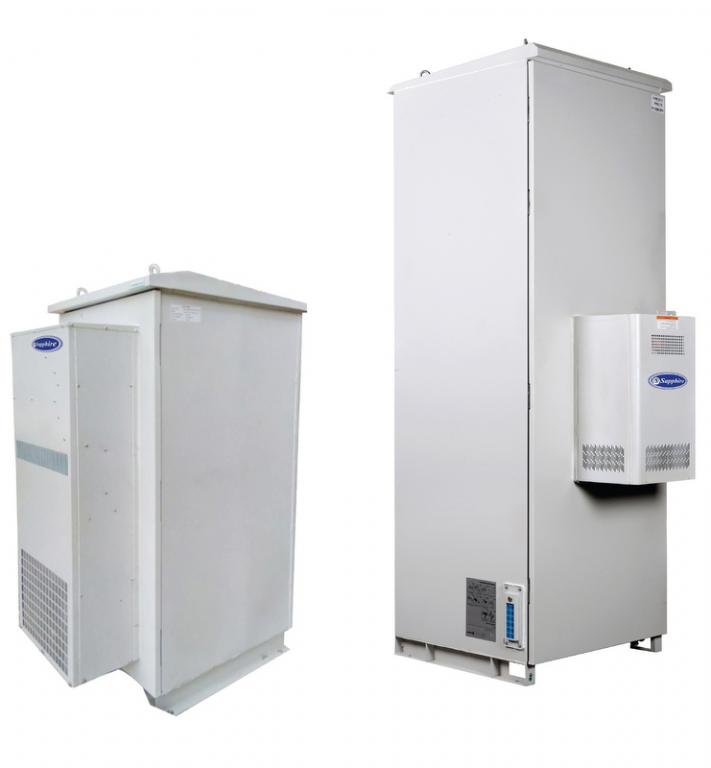

230 VAC operated units are excellent match to your electrical and electronic panel cooling needs. These units are designed specifically understanding the high sensible cooling requirement and able to run non stop for long hours. High reliable components and electronics supported by high ambient design ensure your CNC machines work smoothly all year round. The model is available with various capacity ranged from 300 W to 5000 W on single chassis . The mounting options are available as wall mount , rack mount Or Top mount.
FEATURES:
* GI Powder coated body
* High sensible cooling
* High static backward curved fan
* Fully programmable micro-controller
* Inbuilt safety for High / Low temperature & Voltage.
* Over / Underload protection.
* High / Low pressure switch.
* Vandal proof for outdoor application.
* Down discharge.
* Alarms for critical failure.
APPLICATIONS:
* Computer room / Telecom shelter
* CNC Machine / Control panels.
* Street Cabinet cooling.
* Small equipment room
* Small server
Description | Unit | PAC03-A | PAC05-A | PAC10-A | PAC15-A | PAC20-A | PAC25-A | PAC30-A | |
Cooling Capacity | L35L35 | Watts | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 |
L35L50 | 230 | 380 | 760 | 1160 | 1700 | 2125 | 2550 | ||
Power Supply | V/Ph/Hz | 230V/1/50 | |||||||
Rated Current | Amps | 1.3 | 2.4 | 2.8 | 4.6 | 5 | 6 | 7 | |
Start-up-Current | Amps | 7.8 | 14 | 15 | 20 | 20 | 24 | 28 | |
Air Flow | M3/hr | 175 | 255 | 550 | 550 | 575 | 700 | 850 | |
Power Consumption | L35L35 | Watts | 225 | 300 | 540 | 840 | 950 | 1200 | 1400 |
L35L50 | 250 | 345 | 620 | 950 | 1090 | 1380 | 1600 | ||
Operating Temperature Ranges | Deg C | 20-55 | |||||||
Unit Dimension w x d x h | mm | 320 x 265 x 520 | 425 x 320x1250 | 425 x 320x1600 | 500 x 420 x 1600 | ||||
Unit Weight | Kgs | 19 | 25 | 45 | 50 | 55 | 60 | 70 | |
Protection Category | Internal Circuit | IP54 |
