5 tons
Features for Freestanding type split air conditioner

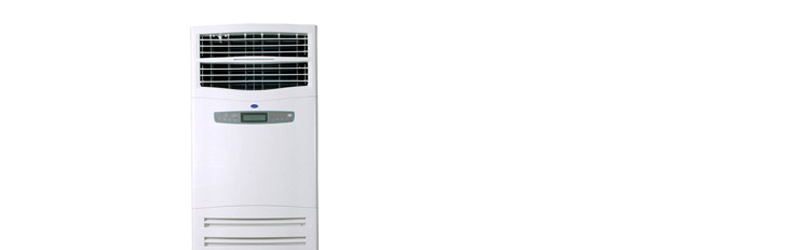

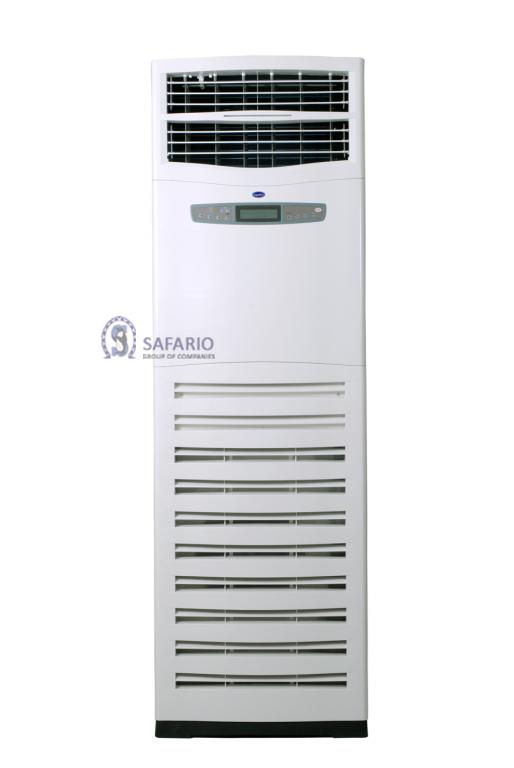

Stylish indoor unit suitable for room interiors.
Low noise operation
Self diagnosis & and auto protection design.
Valve protection for the outdoor units.
Anti –Corrosive polyester powder coated cabinet.
Super tropical compressors especially for Gulf conditions.
Built in safety devices ensures best efficiency & smooth working.

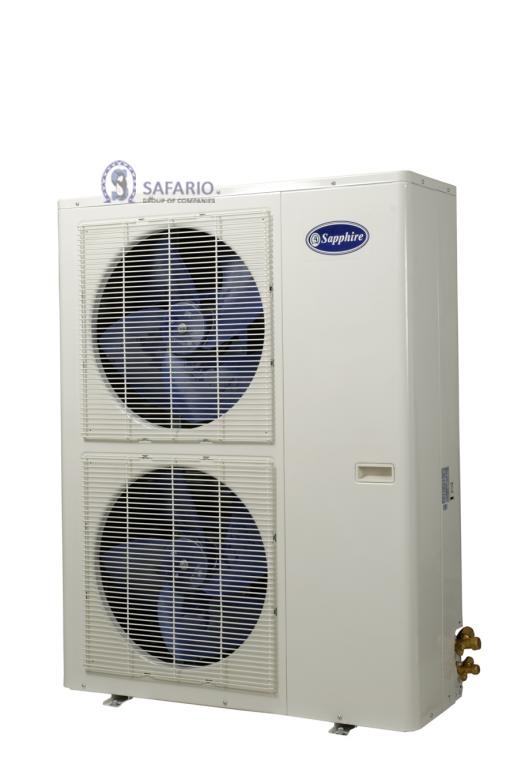

Dual fan outdoor unit
| TECHNICAL DETAILS | |||
| 5 Ton | |||
| Model No | SM-FW 60CR-T1 | ||
| Cooling capacity | BTU/Hr | 60000 | |
| Cooling capacity | KW | 17.5 | |
| Heating Capacity | KW | N.A. | |
| Rated input power | watts | 6000 | |
| Rated voltage/ph/frequency | Volts/Ph/Hz | 380-3-50 | |
| Air Flow | M3/ Hr | 2200 | |
| NOISE LEVEL | |||
| Indoor Hi/Med/Lo | DB | 53/50/47 | |
| Outdoor | DB | 63 | |
| Compressor type | Scroll | ||
| Unit Dimension | |||
| Indoor W x H x D | In mm | 600 x 1890 x 345 | |
| Outdoor W x H x D | In mm | 970 x 1245 x 400 | |
| Weight Indoor / Outdoor | Kgs | 65/114 | |
| Packing Dimension | |||
| Indoor W x H x D | In mm | 685 x 1985 x 450 | |
| Outdoor W x H x D | In mm | 1018 x 1380 x 435 | |
| Piping Connection | |||
| Liquid Side | inch | ½ | |
| Gas Side | inch | ¾ | |
