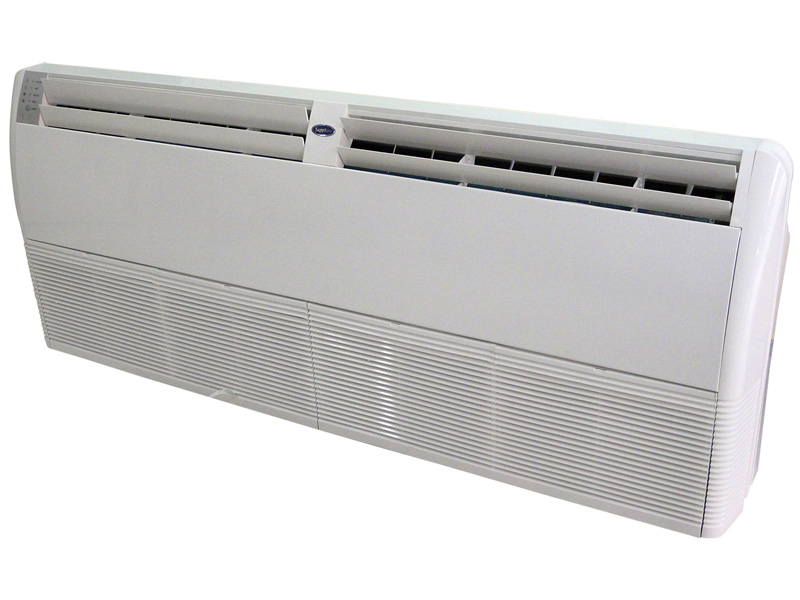

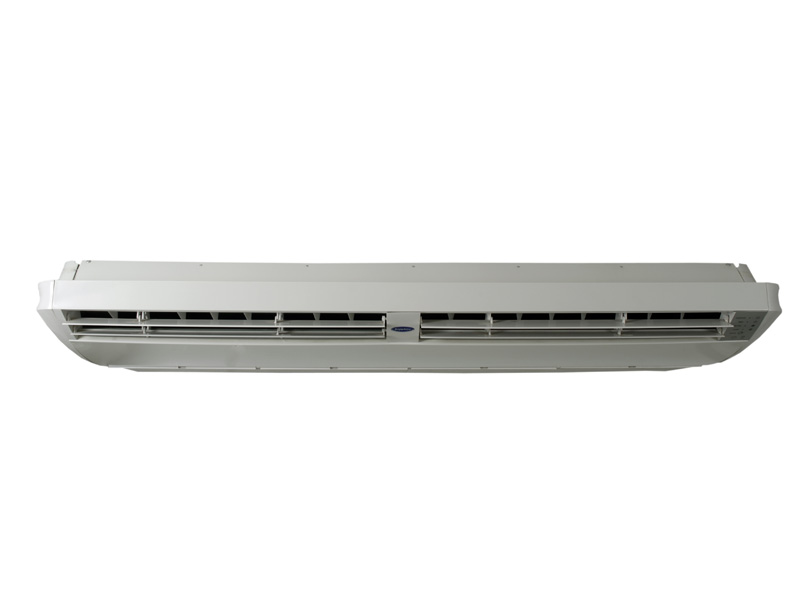

Features for Floor / Ceiling type split air conditioner
Innovative & Elegant appearance.
Unit can be installed on the floor or ceiling.
Compact but high efficient three speed indoor unit.
Wide angle horizontal and vertical auto swing.
Easy access for cleaning the filters.
Valve protection for the outdoor units.
Coil guard protection for outdoor units.
Anti –Corrosive polyester powder coated cabinet.
Super tropical compressors especially suitable for Gulf conditions.
Built in safety devices
TECHNICAL SPECIFICATIONS | ||
Specifications | Details | |
Model No. | Outdoor Unit | MOT-60CR |
Indoor Unit | MUT-60CR | |
Cooling Capacity | BTU/Hr | 60000 |
Cooling Capacity | KW | 17.5 |
Rated Input Power | watts | 5500 |
Rated voltage/ph/frequency | Volts/Ph/Hz | 380-3-50 |
Air Flow | m³/Hr | 2000 |
NOISE LEVEL | ||
Indoor Hi/Med/Lo | dB | 47/46/42 |
Outdoor | dB | 60 |
Compressor type | Scroll | |
UNIT DIMENSION | ||
Indoor WxHxD | mm | 1610 x 660 x 240 |
Outdoor WxHxD | mm | 940 x 1245 x 340 |
Weight Indoor/Outdoor | Kgs | 52/118 |
Refrigerant | gas | R-22 |
PIPING CONNECTION | ||
Liquid Side | inch | ½ |
Gas Side | inch | ¾ |
