Features of Wall type Split air conditioners

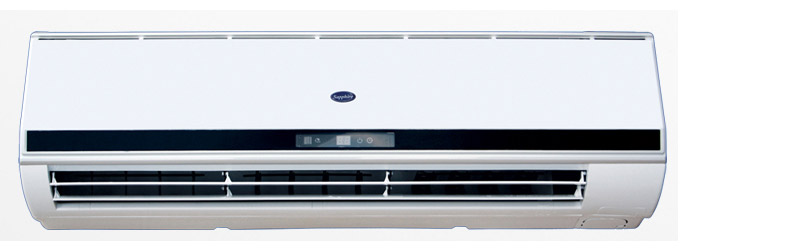

Stylish indoor flat panel that suits the interior of the room.
Unique low noise design for indoor/outdoor fan.
Dual louvers deliver air up and down to avoid human body to feel cool directly.
Easily removal front panel for periodic cleaning.
Trapeziform Inner groove copper tube improves cooling efficiency & lowers power consumption.
Hydrophilic Aluminum fins in indoor units improve the cooling efficiency.

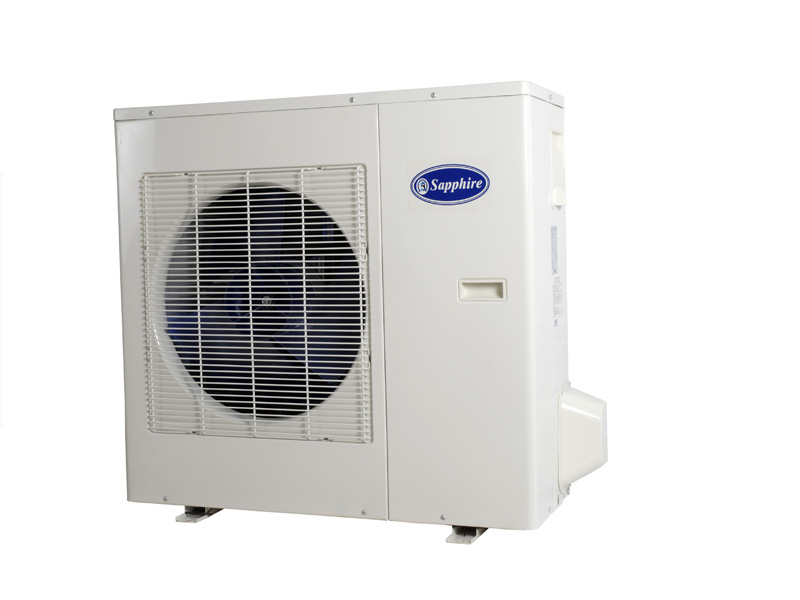

Saw teeth fan wheel to reduce the vibration and operational noise of outdoor.
Valve protection for the outdoor units.
Anti-corrosive polyester powder coated cabinet.
Super tropical compressors suitable for Gulf countries climate.
Built in safety devices.
Model No | SM-SW-24CR-T1 | ||
Cooling Capacity | BTU/Hr | 24000 | |
KW | 7 | ||
Power Supply | V-Ph-Hz | 220-1-50 | |
Input Power | Watts | 2650 | |
Input Current | Amp | 12.5 | |
E.E.R | BTU/Hr.w, W/W | 8.9 | |
2.61 | |||
Air Flow | M3/Hr | 1080 | |
Noise Level | Indoor | db | 45 |
Outdoor | 59 | ||
Compressor Type | Rotary | ||
Pipe Connection Sizes | Gas side | mm/Inch | 16.0 (5/8”) |
Liquid side | 9.53 ( 3/8”) | ||
Refrigerant | Type | R-22 | |
Unit Dimension ( W x H x D ) | Indoor | mm | 1080x330x225 |
Outdoor | 915x700x360 | ||
Packing Dimension ( W x H x D ) | Indoor | mm | 1165x320x445 |
Outdoor | 965x755x360 | ||
Weight | Indoor | Kg | 22 |
Outdoor | 65 | ||
Stuffing Quantity ( 20’,40’ , 40’ HQ ) | Set | 58/128/145 | |
Specification of 2.0 ton wall type split AC – Reciprocating type | |||
Model No | SM-SW24CR-T2 | ||
Cooling Capty | BTU/Hr | 24000 | |
KW | 7 | ||
Power Supply | V-Ph-Hz | 220-1-50 | |
Input Power | Watts | 2700 | |
Input Current | Amp | 12.5 | |
E.E.R | BTU/Hr.w, W/W | 8.8 | |
2.61 | |||
Air Flow | M3/Hr | 1050 | |
Noise Level | Indoor | db | 45 |
Outdoor | 59 | ||
Compressor Type | Reciprocating | ||
Pipe Connection Sizes | Gas side | mm/Inch | 16.0 ( 5/8’’) |
Liquid side | 9.53 ( 3/8”) | ||
Refrigerant | Type | R-22 | |
Unit Dimension ( W x H x D ) | Indoor | mm | 1080x225x330 |
Outdoor | 915x700x360 | ||
Packing Dimension ( W x H x D ) | Indoor | mm | 1165x320x445 |
Outdoor | 965x755x395 | ||
Weight | Indoor | 17 | |
Outdoor | Kg | 64 | |
Stuffing Quantity ( 20’,40’ , 40’ HQ ) | Set | 58/128/145 |
