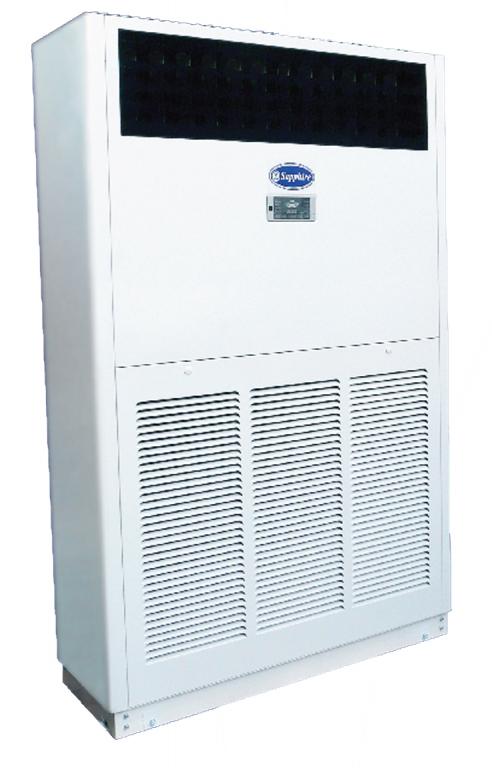

Features for Freestanding type split air conditioner
Stylish indoor unit suitable for room interiors.
Low noise operation
Self diagnosis & and auto protection design.
Valve protection for the outdoor units.
Anti –Corrosive polyester powder coated cabinet.
Super tropical compressors especially for Gulf conditions.
Built in safety devices ensures best efficiency & smooth working.

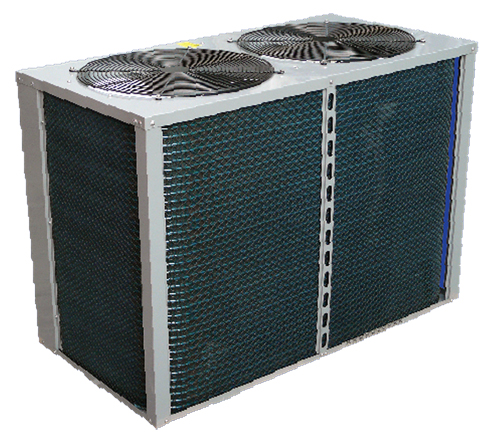

Dual fan outdoor unit
Two compressor system for 8 ton unit
TECHNICAL DETAILS | |||
8 ton | |||
Model No | SFAHC96 | ||
Cooling capacity | BTU/Hr | 96000 | |
Cooling capacity | KW | 28.13 | |
Heating Capacity | KW | 30.38 | |
Rated input power | watts | 9004 | |
Rated voltage/ph/frequency | Volts/Ph/Hz | 380-3-50 | |
Air Flow | M3/ Hr | 4370 | |
NOISE LEVEL | |||
Indoor Hi/Med/Lo | DB | 60.9 | |
Outdoor | DB | 64.7 | |
Compressor type | Scroll | ||
Unit Dimension | |||
Indoor W x H x D | In mm | 1200 x 1860 x 420 | |
Outdoor W x H x D | In mm | 1255 x 908 x 700 | |
Weight Indoor / Outdoor | Kgs | 158/174 | |
Packing Dimension | |||
Indoor W x H x D | In mm | 1245 x 1980 x 455 | |
Outdoor W x H x D | In mm | 1295 x1025 x 700 | |
Piping Connection | |||
Liquid Side | inch | ½ | |
Gas Side | inch | 1⅛ |
