1 Ton

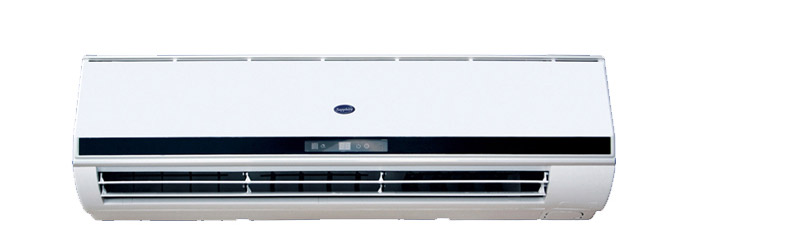

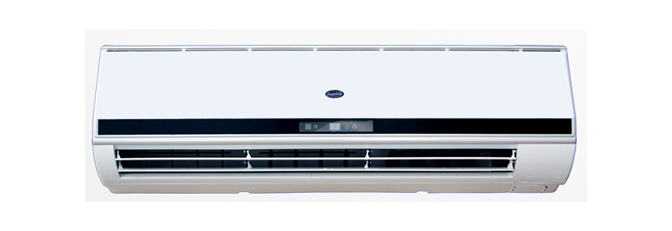

Features for Floor / Ceiling type split air conditioner
Innovative & Elegant appearance.
Unit can be installed on the floor or ceiling.
Compact but high efficient three speed indoor unit.
Wide angle horizontal and vertical auto swing.
Easy access for cleaning the filters.
Valve protection for the outdoor units.
Coil guard protection for outdoor units.
Anti –Corrosive polyester powder coated cabinet.
Super tropical compressors especially suitable for Gulf conditions.
Built in safety devices
| Model No | SM-SW12CR-T1 | ||
| Cooling Capacity | BTU/Hr | 12000 | |
| KW | 3.5 | ||
| Power Supply | V-Ph-Hz | 220-1-50 | |
| Input Power | Watts | 1250 | |
| Input Current | Amp | 5.5 | |
| E.E.R | BTU/Hr.w, W/W | 9.7 | |
| 2.81 | |||
| Air Flow | M3/Hr | 600 | |
| Noise Level | Indoor | db | 35 |
| Outdoor | 54 | ||
| Compressor Type | Rotary | ||
| Pipe Connection Sizes | Gas side | mm/Inch | 6.35 (1/4) |
| Liquid side | 12.7 ( 1/2) | ||
| Refrigerant | Type | R-22 | |
| Unit Dimension ( W x H x D ) | Indoor | mm | 810 x 280 x 195 |
| Outdoor | 850 x 545 x 300 | ||
| Packing Dimension ( W x H x D ) | Indoor | mm | 915 x 275 x 360 |
| Outdoor | 910 x 575 x 335 | ||
| Weight | Indoor | Kg | 12 |
| Outdoor | 42 | ||
| Stuffing Quantity ( 20’,40’ , 40’ HQ ) | Set | 130 / 254 / 270 |
