Blends unobtrusively with any interior décor: only grilles are visible
Reduction in power consumption
Improved comfort thanks to 3-step air flow control
Whisper quiet operation
Standard air filter removes airborne dust particles to ensure a steady supply of clean air
During start up, the room can be cooled down very quickly; once the temperature in the room has reached its set point, the low power operation starts to save energy.
Easy installation thanks to automatic air flow adjustment towards nominal air flow rate
Standard built-in drain pump increases reliability of the drain system
Compact slim indoor
Valve protection for the outdoor units.
Anti –Corrosive polyester powder coated cabinet.
Super tropical compressors especially for Gulf conditions.
Built in safety devices ensures best efficiency & smooth working.
|

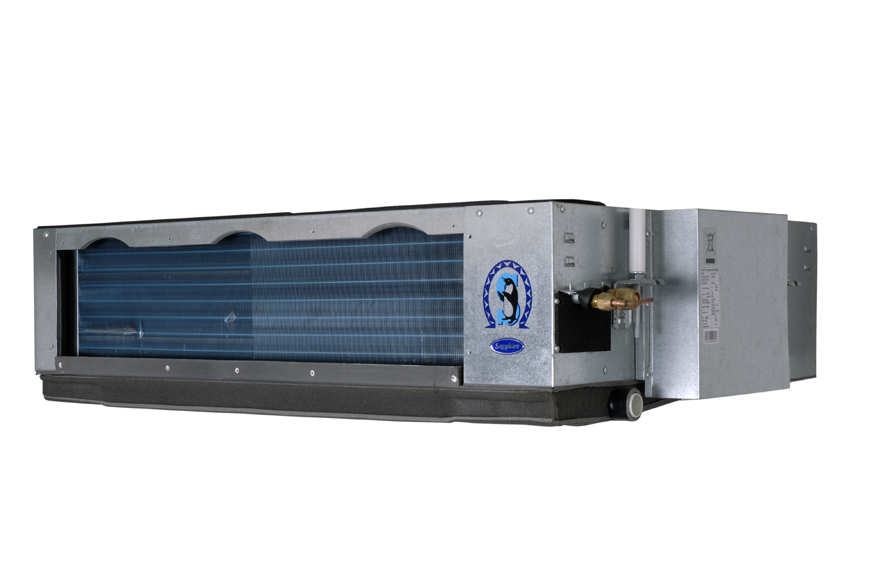

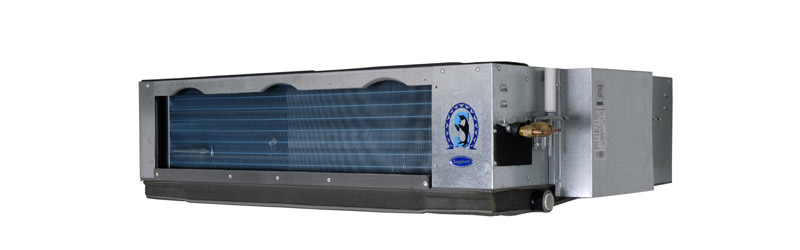

Ducted Indoor
|
| Model |
SMTBT-36CW |
| Power supply |
V-ph-Hz |
380~420-3-50 |
| Cooling |
Capacity |
Btu/h |
36000 |
| Input |
W |
3889 |
| EER |
W/W |
2.7 |
| Indoor fan motor |
Model |
|
YSK140-4P |
| Qty |
|
1 |
| Input |
W |
291/168/138 |
| Capacitor |
uF |
10uF/450V |
| Speed(Hi/Med/Lo) |
r/min |
1070/790/710 |
| Indoor coil |
Number of rows |
|
4 |
| Tube pitch(a)*row pitch(b) |
mm |
21x13.37 |
| Fin spacing |
mm |
1.5 |
| Fin type |
|
Hydrophilic aluminium |
| Tube outside dia.and type |
mm |
Φ7,Inner grooved tube |
| Coil length * height * width |
mm |
955x336x53.48 |
| Number of circuits |
|
8 |
| Indoor air flow(Hi/Med/Lo) |
m3/h |
2270/1890/1650 |
| Indoor external static pressure |
Pa |
80 |
| Indoor noise level (sound pressure)(Hi/Med/Lo) |
dB(A) |
49/39/36 |
| Throttle type |
|
Throttle valve |
| Indoor unit |
Dimension (WxDxH) |
mm |
1140x775x270 |
| Packing(WxDxH) |
mm |
1355x795x350 |
| Net/Gross weight |
kg |
42/46 |
| Design pressure |
MPa |
2.94/1.0 |
| Drainage water pipe diameter |
mm |
ODΦ25 |
| Refrigerant piping |
Liquid side/ Gas side |
mm |
Φ9.52/Φ19 |
| Controller |
|
KJR-10B/DP(T)-E |
| Operation temperature |
℃ |
17~30 |
| Remarks:1.The above design and specifications are subject to change without prior notice for product improvement. |
| 2.The values given in the table for the noise level reflect the levels in anechoic chamber. |
|
|
| |
|

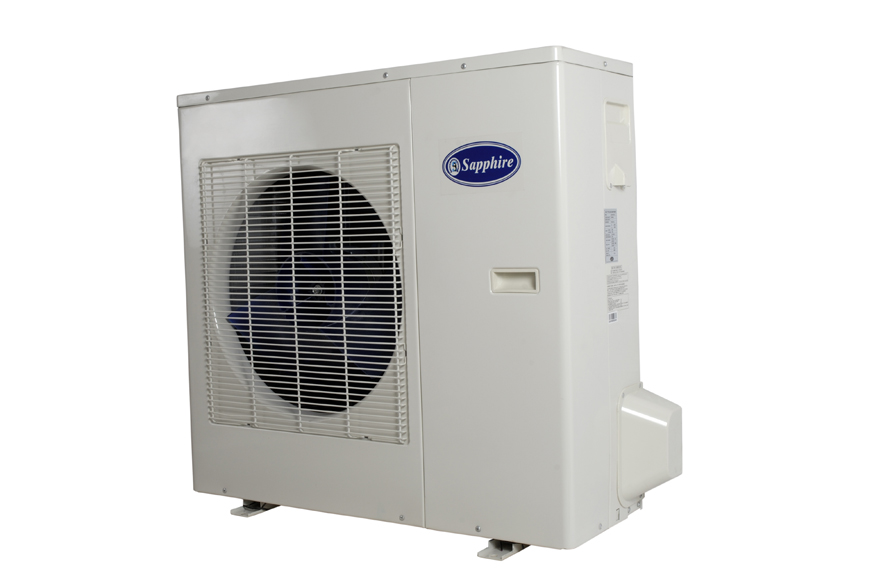

Universal Outdoor
|
| Model |
SMOUT-36C-R |
|
| Power supply |
V- Ph-Hz |
380~420-3-50 |
| Max. input consumption |
W |
5800 |
| Max. input current |
A |
10 |
| Compressor |
Model |
|
C-SB303H8A |
| Type |
|
Scroll |
| Brand |
|
Sanyo |
| Capacity |
Btu/h |
39579 |
| Input |
W |
3800 |
| Rated current (RLA) |
A |
6.8 |
| Locked rotor Amp(LRA) |
A |
42-45 |
| Thermal protector position |
|
Internal |
| Capacitor |
uF |
--- |
| Refrigerant oil |
ml |
1700 |
| Outdoor fan motor |
Model |
|
YDK75-6C |
| Qty |
|
1 |
| Input |
W |
162 |
| Capacitor |
uF |
5UF/450V |
| Speed |
r/min |
860 |
| Outdoor coil |
Number of rows |
|
2 |
| Tube pitch(a) × row pitch(b) |
mm |
22x19.05 |
| Fin spacing |
mm |
1.6 |
| Fin type |
|
Unhydrophilic aluminium |
| Tube outside dia. and type |
mm |
Φ7.94,inner grooved tube |
| Coil length×height×width |
mm |
766×792×38.1 |
| Number of circuits |
|
6 |
| Outdoor air flow |
m3/h |
4800 |
| Outdoor noise level |
dB(A) |
58 |
| Throttle type |
|
/ |
| Outdoor unit |
Dimension (W×D×H) |
mm |
895x313x862 |
| Packing (W×D×H) |
mm |
1043x395x915 |
| Net/ Gross weight |
kg |
79/84 |
| Refrigerant type/Quantity |
Type |
|
R22 |
| Charged volume |
kg |
2 |
| Design pressure |
MPa |
2.94/1.0 |
| Refrigerant piping |
Liquid side/ Gas side |
mm |
Φ9.5/Φ19 |
| Max. pipe length |
m |
30(Outdoor unit down) |
| 30(Outdoor unit up) |
| Max. difference in level |
m |
20(Outdoor unit down) |
| 25(Outdoor unit up) |
| Ambient temp (Cooling/Heating) |
℃ |
17~54 |
| Remarks:1.The above design and specifications are subject to change without prior notice for product improvement. |
| 2.The values given in the table for the noise level reflect the levels in anechoic chamber. |
|
|
|
