3 ton

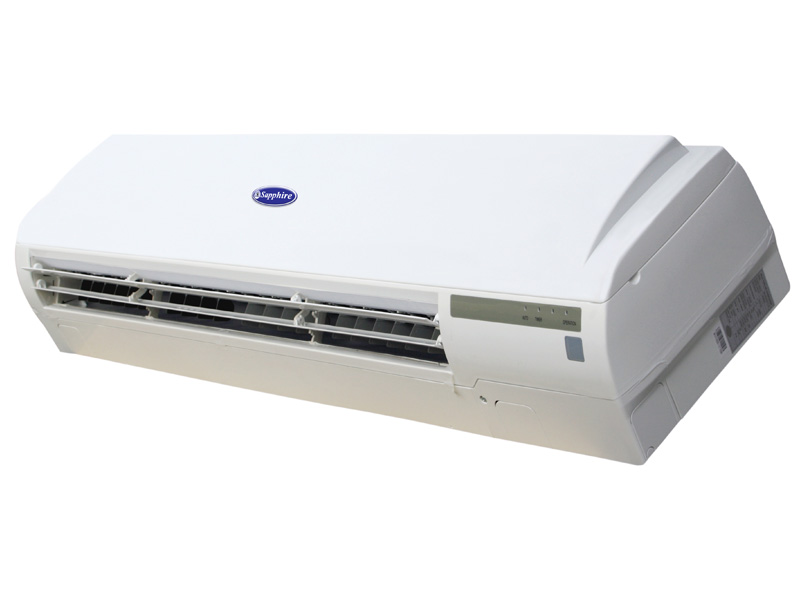

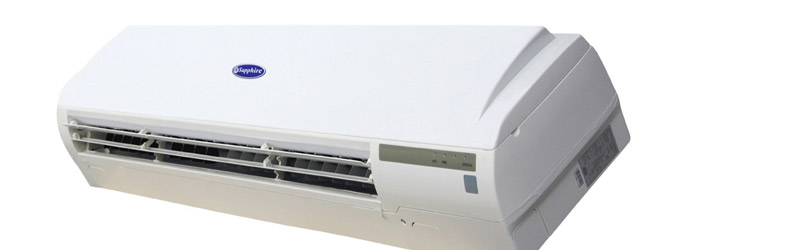

Panel Cooling Air Conditioners - Safario

Features of Wall type Split air conditioners
Stylish indoor flat  panel that  suits the interior of the room.
Unique low noise design for  indoor/outdoor fan.
Dual louvers deliver air up and down to avoid human body to feel cool directly.
Easily removal front  panel  for periodic cleaning.
Trapeziform Inner groove copper tube improves cooling efficiency & lowers power consumption.
Hydrophilic Aluminum fins in indoor units improve the cooling efficiency.
Saw teeth fan wheel to reduce the vibration and operational noise of outdoor.
Valve protection for the outdoor units.
Anti-corrosive polyester powder coated cabinet.
Super tropical compressors suitable for Gulf countries climate.
Built in safety devices.

Model No     SM-SW36CR-T1
Cooling Capacity   BTU/Hr 36000
    KW 10.5
Power Supply   V-Ph-Hz 220-1-50
Input Power    Watts 3660
Input Current   Amp 16.6
E.E.R   BTU/Hr.w, W/W 8.8
  2.61
Air Flow   M3/Hr 1350
Noise Level Indoor db 49
Outdoor 59
Compressor Type     Rotary
Pipe Connection Sizes Gas side mm/Inch 16.0 ( 5/8’’)
Liquid side 9.53 ( 3/8”)
Refrigerant    Type R-22
Unit Dimension ( W x H x D ) Indoor   1230x325x230

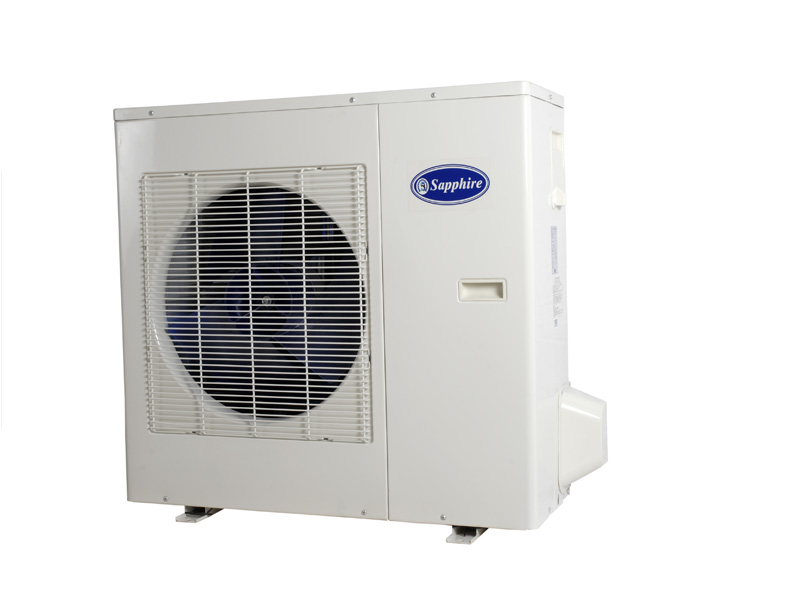

Outdoor mm 975x855x355
Packing Dimension ( W x H x D )  Indoor   1345x335x435
Outdoor mm 1045x930x395
Weight                                               Indoor   24
Outdoor Kg 85
Stuffing Quantity ( 20’,40’ , 40’ HQ )   Set 44/96/105
