Free Standing Ac – 5 Tons

Features for Freestanding type split air conditioner



  • Stylish indoor unit suitable for room interiors.
  • Low noise operation
  • Self diagnosis & and auto protection design.
  • Valve protection for the outdoor units.
  • Anti –Corrosive polyester powder coated cabinet.
  • Super tropical compressors especially for Gulf conditions.
  • Built in safety devices ensures best efficiency & smooth working.

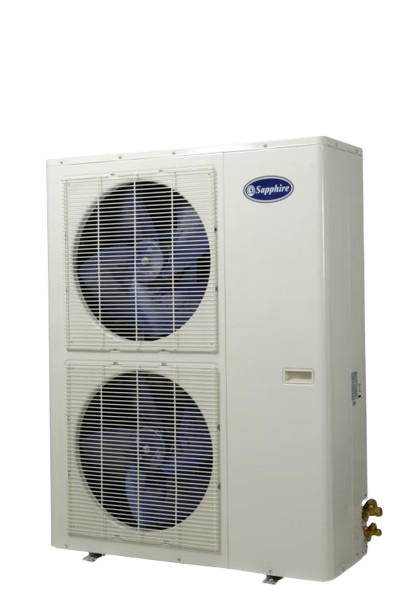

  • Dual fan outdoor unit
TECHNICAL DETAILS
5 Ton
Model No SM-FW 60CR-T1
Cooling capacity BTU/Hr 60000
Cooling capacity KW 17.5
Heating Capacity KW N.A.
Rated input power watts 6000
Rated voltage/ph/frequency Volts/Ph/Hz 380-3-50
Air Flow M3/ Hr 2200
NOISE LEVEL
Indoor     Hi/Med/Lo DB 53/50/47
Outdoor DB 63
Compressor type Scroll
Unit Dimension
Indoor   W x H x D In mm 600 x 1890 x 345
Outdoor W x H x D In mm 970 x 1245 x 400
Weight     Indoor / Outdoor Kgs 65/114
Packing Dimension
Indoor   W x H x D In mm 685 x 1985 x 450
Outdoor W x H x D In mm 1018 x 1380 x 435
Piping Connection
Liquid Side inch ½
Gas Side inch ¾
