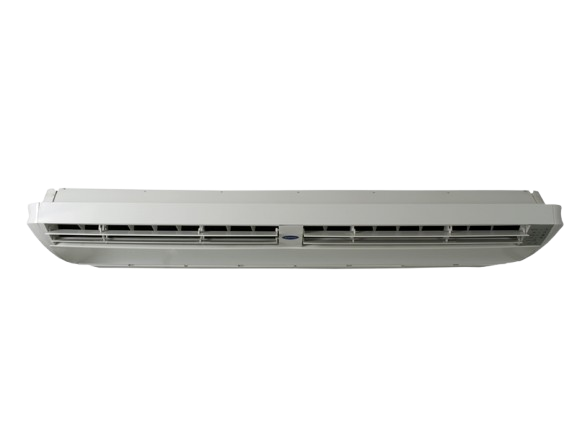

Floor/Ceiling Mounted AC 5tons

Features for Floor / Ceiling type split air conditioner



  • Innovative & Elegant appearance.
  • Unit can be installed on the floor or ceiling.
  • Compact but high efficient three speed indoor unit.
  • Wide angle horizontal and vertical auto swing.
  • Easy access for cleaning the filters.
  • Valve protection for the outdoor units.
  • Coil guard protection for outdoor units.
  • Anti –Corrosive polyester powder coated cabinet.
  • Super tropical compressors especially suitable for Gulf conditions.
  • Built in safety devices
TECHNICAL SPECIFICATIONS
Specifications Details
Model No. Outdoor Unit MOT-60CR
Indoor Unit MUT-60CR
Cooling Capacity BTU/Hr 60000
Cooling Capacity KW 17.5
Rated Input Power watts 5500
Rated voltage/ph/frequency Volts/Ph/Hz 380-3-50
Air Flow m³/Hr 2000
NOISE LEVEL
Indoor Hi/Med/Lo dB 47/46/42
Outdoor dB 60
Compressor type Scroll
UNIT DIMENSION
Indoor WxHxD mm 1610 x 660 x 240
Outdoor WxHxD mm 940 x 1245 x 340
Weight Indoor/Outdoor Kgs 52/118
Refrigerant gas R-22
PIPING CONNECTION
Liquid Side inch ½
Gas Side inch ¾
