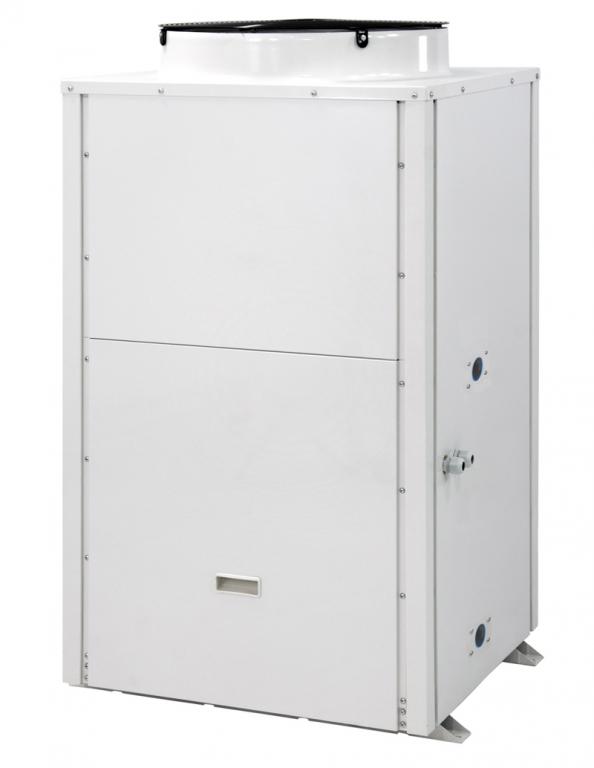

SHFP 22 - 17 HC

Heating capacity kW 21.5
C.O.P (air 15°C,water 26°C) kW 17.5
Cooling capacity > 6 > 6
Power input kW 3.95
Power supply V/Ph/Hz 380/3/50
Compressor brand Copeland
Compressor type   Scroll
Compressor Quantity 1
Fan type   Axial
Fan Quantity PCS 1
Refrigerant  R 22 R 22
Refrigerant control    Electronic Expansion Valve
Heat exchanger    Titanium Heat Exchanger
Defrosting    Four way valve reverse defrosting
Nominal water flow m3/h 7.3
Sound level dB(A) 56
Max water temperature ℃ 40 40
Outdoor temp. limits ℃ Min:-10/Max: +52 Min:-10/Max: +52
Degree of protection  IPEX14 IPEX14
Weight kg 137
Length*Width*Height mm 820*700*1380
