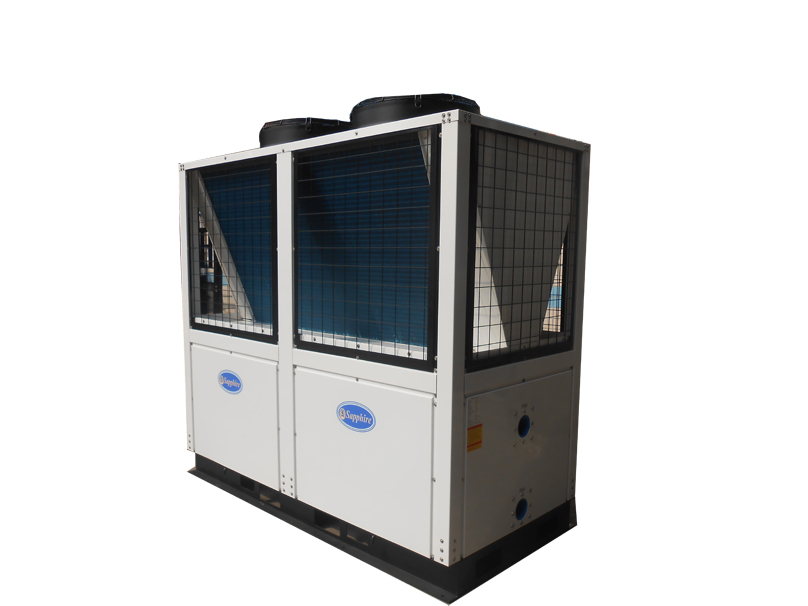

SFHP85 - 70 HC

Heating capacity kW 85
C.O.P (air 15°C,water 26°C) kW 70
Cooling capacity   >6
Power input kW 15.9
Power supply V/Ph/Hz 380/3/50
Compressor brand Copeland
Compressor type type Scroll
Compressor Quantity 4
Fan type Axial
Fan Quantity PCS 2
Refrigerant  R 22
Refrigerant control  Electronic Expansion Valve

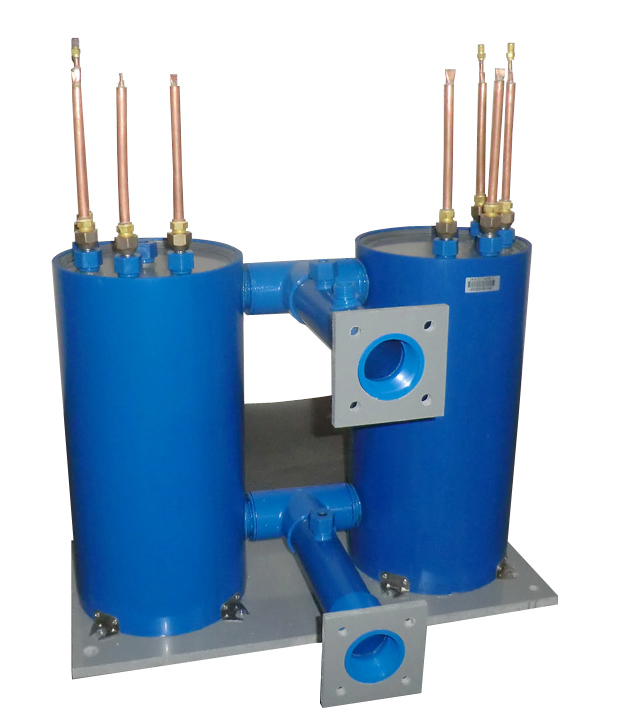

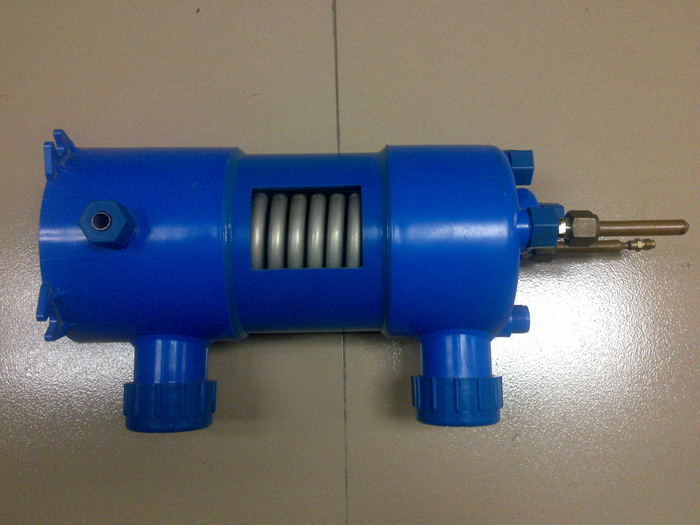

Heat exchanger  Titanium Heat Exchanger
Defrosting  Four way valve reverse defrosting
Nominal water flow m3/h 24.4
Sound level dB(A) 60
Max water temperature ℃ 40
Outdoor temp. limits ℃ Min:-10/Max: +52
Degree of protection  IPEX14
Weight kg 650
Length*Width*Height mm 2175*1070*2190
