Products & Services

60 kw/40 kw

  • Energy Savings over Traditional Heating methods
  • Works on all weather – Heating during Winter & Cooling in Summer
  • Unit works on Solar Energy principle – Drawing heat from the atmosphere and discharging it into the swimming pool.
  • Titanium Heat Exchanger – for higher heat exchange efficiency
  • Units are designed for high ambient temperature
  • Quiet running – noise level at very low.

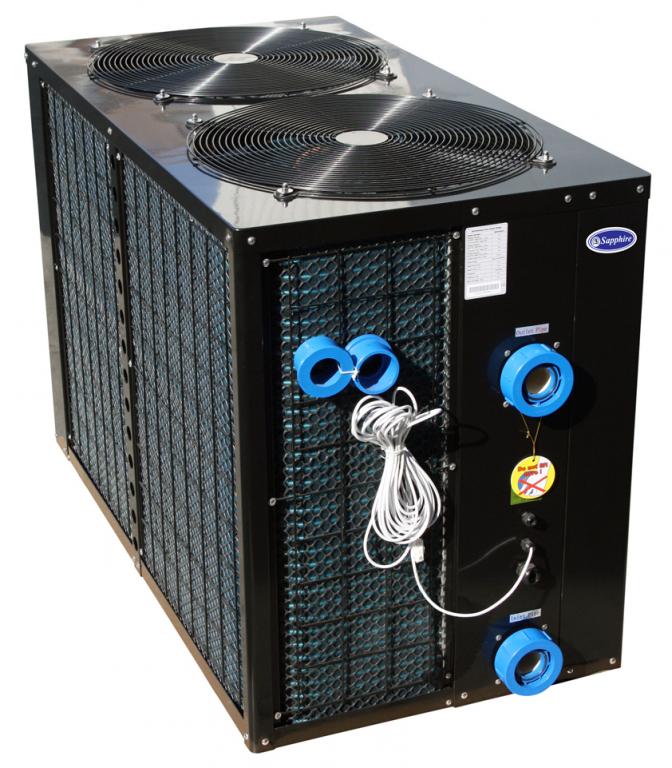

MODEL NO. SFHCP60V
Heating Capacity KW 60
C.O.P (air 26°C,water 26°C) > 6
Cooling Capacity KW 40
C.O.P (air 43°C,water 32°C > 3.5
Suggested Pool Volume m³ 200-300
Operating Range - Air (°C) 0-55
Operating Range -Water (°C) 7-35
Advised water Flux m³/h 15
Rated Power/Max. Power Kw 9.0/12.6
Power Supply 380-415V/3 Ph/50 Hz
Rated Current/Max Current   A 13.7/19
Heat Exchanger Titanium in PVC
Compressor  SCROLL
Fan Direction VERTICAL
Noise Level dB < 66
Water Pipe in/out Inches 1.5
Net Dimension L x W x H     mm  1500x750x1000
Packing Dimension L x W x H mm  1600x850x1100
Net/Gross Weight   Kg.  248/280
