5 Ton

Blends unobtrusively with any interior décor: only grilles are visible
Reduction in power consumption
Improved comfort thanks to 3-step air flow control
Whisper quiet operation
Standard air filter removes airborne dust particles to ensure a steady supply of clean air
During start up, the room can be cooled down very quickly; once the temperature in the room has reached its set point, the low power operation starts to save energy.
Easy installation thanks to automatic air flow adjustment towards nominal air flow rate
Standard built-in drain pump increases reliability of the drain system
Compact slim indoor
Valve protection for the outdoor units.
Anti –Corrosive polyester powder coated cabinet.
Super tropical compressors especially for Gulf conditions.
Built in safety devices ensures best efficiency & smooth working.

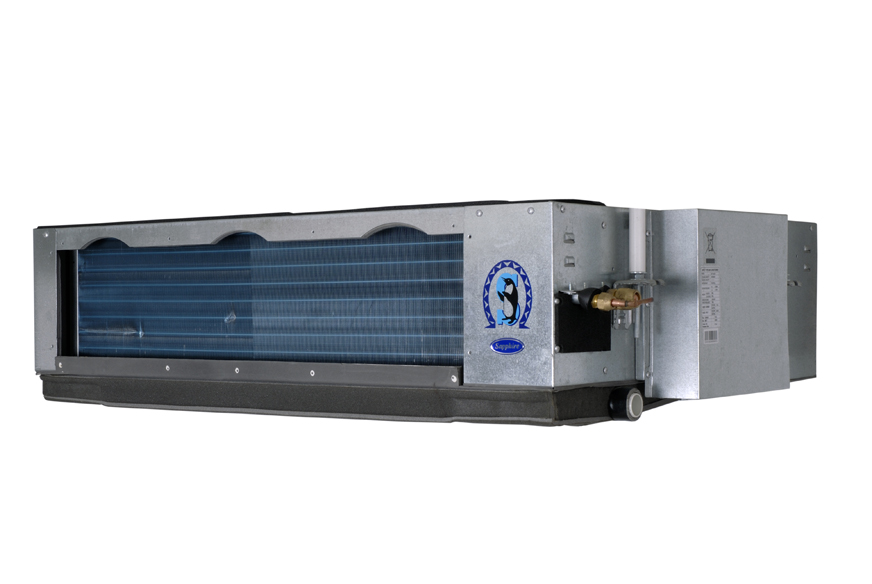

Ducted Indoor

Model SMTBT-60CW
Power supply V-ph-Hz 380~420-3-50
Cooling Capacity Btu/h 60000
Input W 5861
EER W/W 2.73
Indoor fan motor Model   YSK180-4P
Qty    1
Input W 355/223/173
Capacitor uF 10uF/450V
Speed(Hi/Med/Lo) r/min 1080/830/710
Indoor coil Number of rows   4
Tube pitch(a)*row pitch(b) mm 21x13.37
Fin spacing mm 1.5
Fin type    Hydrophilic aluminium
Tube outside dia.and type mm Φ7,Inner grooved tube
Coil length * height * width mm 1030x378x53.48
Number of circuits   8
Indoor air flow(Hi/Med/Lo) m3/h 3150/2510/1990
Indoor external static pressure  Pa 100
Indoor noise level (sound pressure)(Hi/Med/Lo) dB(A) 50/42/37
Throttle type   Throttle valve
Indoor unit Dimension (WxDxH) mm 1200x865x300
Packing(WxDxH) mm 1385x920x373
Net/Gross weight kg 48/56
Design pressure MPa 2.94/1.0
Drainage water pipe diameter mm ODΦ25
Refrigerant piping Liquid side/ Gas side mm Φ9.52/Φ19
Controller   KJR-10B/DP(T)-E
Operation temperature 17~30
Remarks:1.The above design and specifications are subject to change without prior notice for product improvement.
                  2.The values given in the table for the noise level reflect the levels in anechoic chamber.

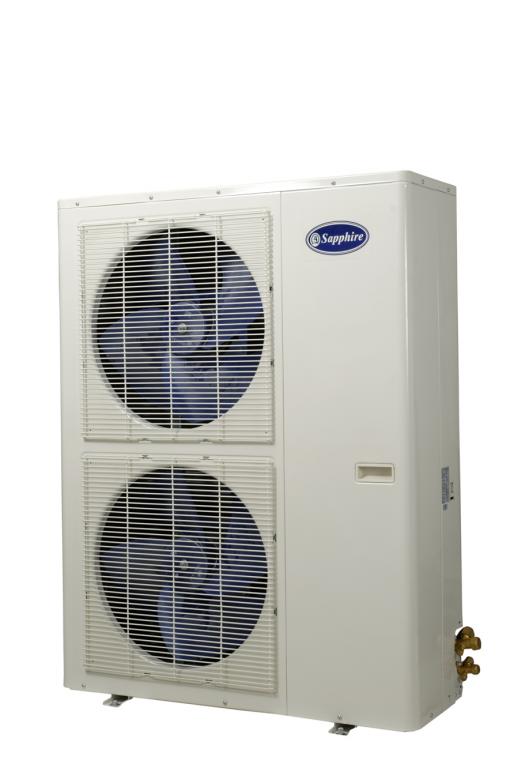

Universal Outdoor

Model SMOUT-60C-R
Power supply V- Ph-Hz 380~420-3-50
Max. input consumption         W 8300
Max. input current              A 14
Compressor Model    C-SBX215H38P
Type    Scroll
Brand    Sanyo
Capacity      Btu/h 60734
Input           W 5350
Rated current (RLA)  A 9.4
Locked rotor Amp(LRA)    A 73
Thermal protector position   Internal
Capacitor uF --
Refrigerant oil ml 1700
Outdoor fan motor Model    YDK65-6/YDK65-6F
Qty    2
Input         W 148x2
Capacitor        uF (3.5UF/450V)x2
Speed         r/min 800
Outdoor coil Number of rows   2
Tube pitch(a) × row pitch(b)   mm 22x19.05
Fin spacing mm 1.6
Fin type   Unhydrophilic aluminium
Tube outside dia. and type mm Φ7.94,inner grooved  tube
Coil length×height×width mm 837x1100x38.1
Number of circuits   8
Outdoor air flow m3/h 6050
Outdoor noise level dB(A) 58
Throttle type   /
Outdoor unit Dimension (W×D×H) mm 900x340x1167
Packing  (W×D×H) mm 1032x443x1307
Net/ Gross weight kg 103/107
Refrigerant type/Quantity  Type   R22
Charged volume kg 3.2
Design pressure MPa 2.94/1.0
Refrigerant piping Liquid side/ Gas side mm Φ9.5/Φ19
Max. pipe length    m 50(Outdoor unit down)
50(Outdoor unit up)
Max. difference in level        m 25(Outdoor unit down)
35(Outdoor unit up)
Ambient temp (Cooling/Heating) 17~54
Remarks:1.The above design and specifications are subject to change without prior notice for product improvement.
                  2.The values given in the table for the noise level reflect the levels in anechoic chamber.
