2 tons

Blends unobtrusively with any interior décor: only grilles are visible
Reduction in power consumption
Improved comfort thanks to 3-step air flow control
Whisper quiet operation
Standard air filter removes airborne dust particles to ensure a steady supply of clean air
During start up, the room can be cooled down very quickly; once the temperature in the room has reached its set point, the low power operation starts to save energy.
Easy installation thanks to automatic air flow adjustment towards nominal air flow rate
Standard built-in drain pump increases reliability of the drain system
Compact slim indoor
Valve protection for the outdoor units.
Anti –Corrosive polyester powder coated cabinet.
Super tropical compressors especially for Gulf conditions.
Built in safety devices ensures best efficiency & smooth working.

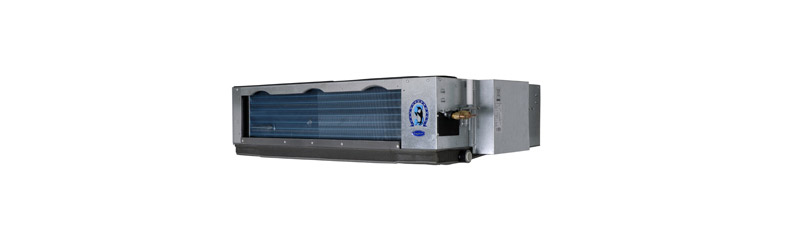

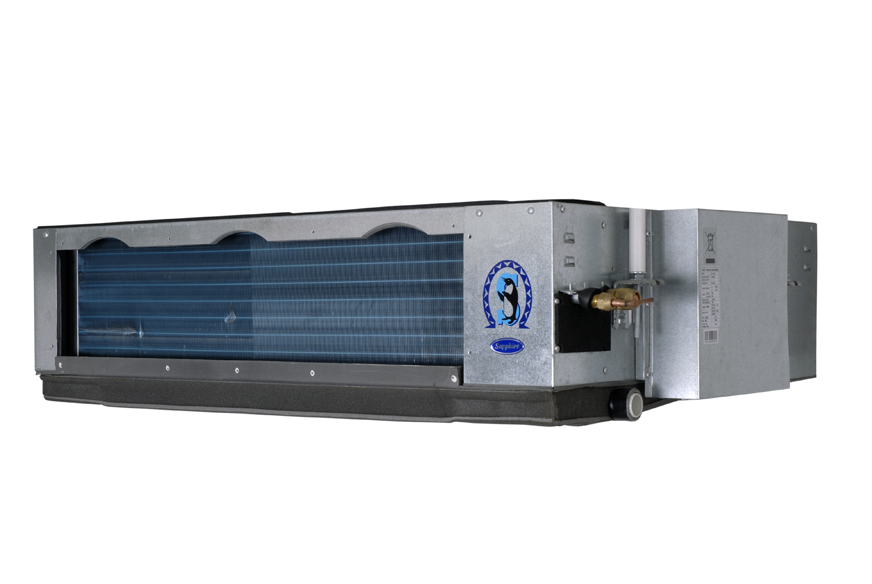

Ducted Indoor

Model SMTBT-24CW
Power supply V-ph-Hz 220~240-1-50
Cooling Capacity Btu/h 24000
Input W 2659
EER W/W 2.67
Indoor fan motor Model   YSK74-4P
Qty    1
Input W 163/93/75
Capacitor uF 3.5UF/450V
Speed(Hi/Med/Lo) r/min 1000/750/680
Indoor coil Number of rows   4
Tube pitch(a)*row pitch(b) mm 21x13.37
Fin spacing mm 1.5
Fin type    Hydrophilic aluminium
Tube outside dia.and type mm Φ7,Inner grooved tube
Coil length * height * width mm 735x252x53.48
Number of circuits   6
Indoor air flow(Hi/Med/Lo) m3/h 1400/1100/1000
Indoor external static pressure  Pa 70
Indoor noise level (sound pressure)(Hi/Med/Lo) dB(A) 44/33/29
Throttle type   Throttle valve
Indoor unit Dimension (WxDxH) mm 920x635x270
Packing(WxDxH) mm 1135x655x350
Net/Gross weight kg 28/33
Design pressure MPa 2.94/1.0
Drainage water pipe diameter mm ODΦ25
Refrigerant piping Liquid side/ Gas side mm Φ9.52Φ15.9
Controller   KJR-10B/DP(T)-E
Operation temperature 17~30
Remarks:1.The above design and specifications are subject to change without prior notice for product improvement.
                  2.The values given in the table for the noise level reflect the levels in anechoic chamber.

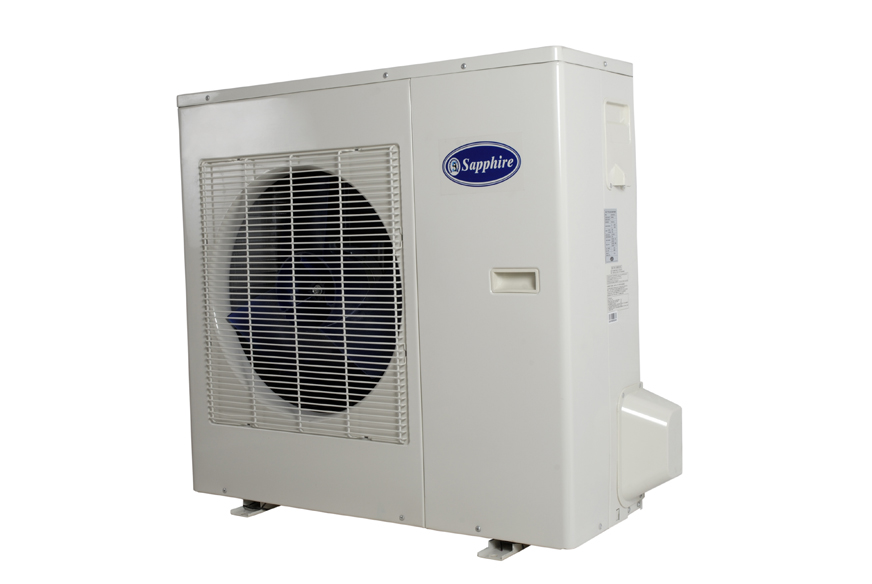

Universal Outdoor

Model SMOUT-24CR
Power supply V- Ph-Hz 220~240-1-50
Max. input consumption         W 3800
Max. input current              A 20
Compressor Model    PH440X3CS-4KTS1
Type    Rotary
Brand    GMCC
Capacity      Btu/h 26136
Input           W 2475
Rated current (RLA)  A 11.9
Locked rotor Amp(LRA)    A 60.1
Thermal protector position   Internal
Capacitor uF 60uF/450V
Refrigerant oil ml 950
Outdoor fan motor Model    YDK53-6C
Qty    1
Input         W 136
Capacitor        uF 3uF/450V
Speed         r/min 800
Outdoor coil Number of rows   2
Tube pitch(a) × row pitch(b)   mm 19.5x11.6
Fin spacing mm 1.2
Fin type   Unhydrophilic aluminium
Tube outside dia. and type mm Φ5,inner grooved tube
Coil length×height×width mm 782x663x23.2
Number of circuits   4
Outdoor air flow m3/h 3400
Outdoor noise level dB(A) 56
Throttle type   /
Outdoor unit Dimension (W×D×H) mm 842x324x695
Packing  (W×D×H) mm 965x395x755
Net/ Gross weight kg 49/51
Refrigerant type/Quantity  Type   R22
Charged volume kg 1.4
Design pressure MPa 2.94/1.0
Refrigerant piping Liquid side/ Gas side mm Φ9.5/Φ15.9
Max. pipe length    m 25(Outdoor unit down)
25(Outdoor unit up)
Max. difference in level        m 10(Outdoor unit down)
15(Outdoor unit up)
Ambient temp (Cooling/Heating) 17~54
Remarks:1.The above design and specifications are subject to change without prior notice for product improvement.
                  2.The values given in the table for the noise level reflect the levels in anechoic chamber.
