Products & Services

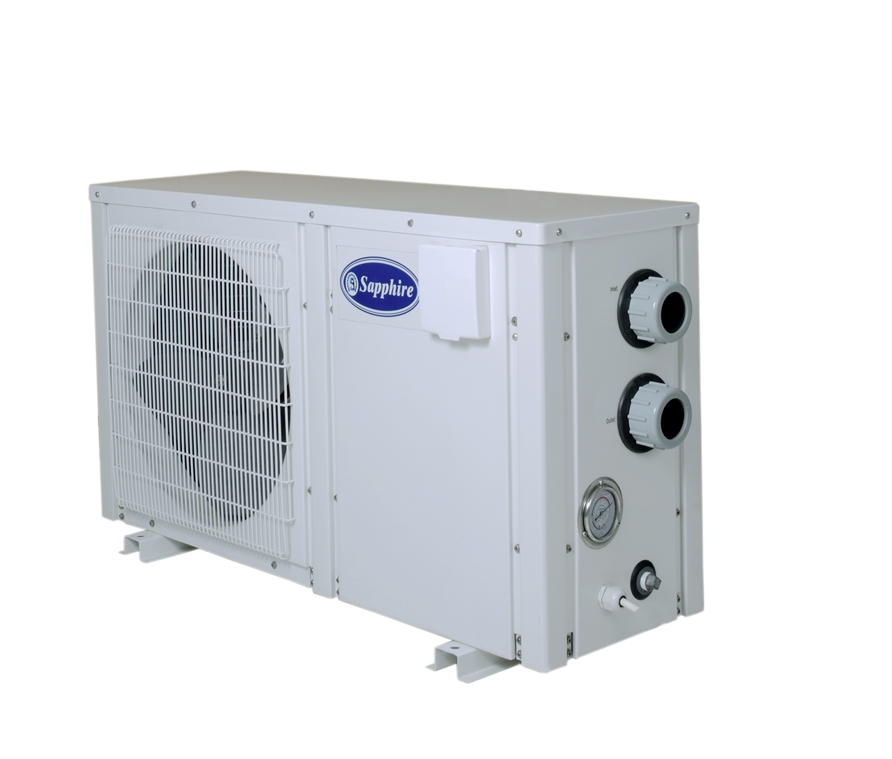

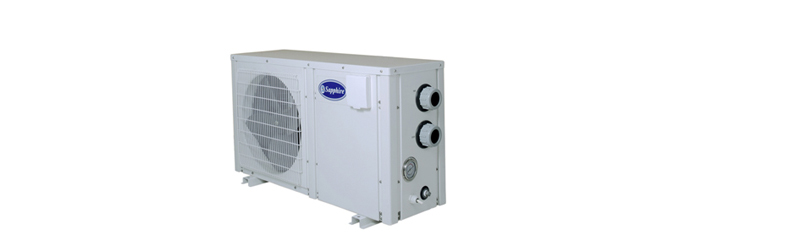

16kw/10kw

  • Energy Savings over Traditional Heating methods
  • Works on all weather – Heating during Winter & Cooling in Summer
  • Unit works on Solar Energy principle – Drawing heat from the atmosphere and discharging it into the swimming pool.
  • Titanium Heat Exchanger – for higher heat exchange efficiency
  • Units are designed for high ambient temperature
  • Quiet running – noise level at very low.
MODEL NO. SFHCP16V
Heating Capacity KW 16
C.O.P (air 26°C,water 26°C) > 6
Cooling Capacity KW 10
C.O.P (air 43°C,water 32°C > 3.5
Suggested Pool Volume m³ 50-80
Operating Range - Air (°C) 0-55
Operating Range -Water (°C) 7-35
Advised water Flux m³/h 6.5
Rated Power/Max. Power Kw 2.4/3.1
Power Supply 220-240V/ 1 Ph/50 Hz
Rated Current/Max Current   A 10.9/14.1
Heat Exchanger Titanium in PVC
Compressor  ROTARY
Fan Direction HORIZONTAL
Noise Level dB < 56
Water Pipe in/out Inches 1.5
Net Dimension L x W x H     mm  700x650x730
Packing Dimension L x W x H mm  750x730x800
Net/Gross Weight   Kg.  85/93
