Products & Services

1.5 ton

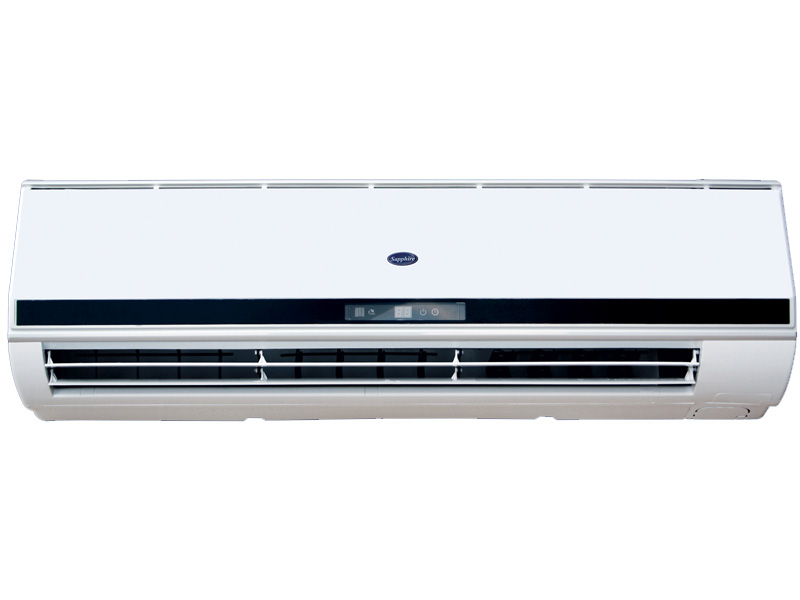

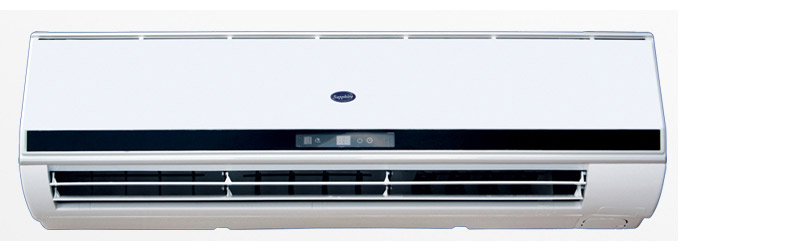

Features of Wall type Split air conditioners
Stylish indoor flat  panel that  suits the interior of the room.
Unique low noise design for  indoor/outdoor fan.
Dual louvers deliver air up and down to avoid human body to feel cool directly.
Easily removal front  panel  for periodic cleaning.
Trapeziform Inner groove copper tube improves cooling efficiency & lowers power consumption.
Hydrophilic Aluminum fins in indoor units improve the cooling efficiency.
Saw teeth fan wheel to reduce the vibration and operational noise of outdoor.
Valve protection for the outdoor units.
Anti-corrosive polyester powder coated cabinet.
Super tropical compressors suitable for Gulf countries climate.
Built in safety devices.

Model No     SM-SW18CR-T1
Cooling Capacity   BTU/Hr 18000
    KW 5.25
Power Supply   V-Ph-Hz 220-1-50
Input Power    Watts 2000
Input Current   Amp 10
E.E.R   BTU/Hr.w, W/W 9
  2.64
Air Flow   M3/Hr 800
Noise Level Indoor db 43
Outdoor 55
Compressor Type     Rotary
Pipe Connection Sizes Gas side mm/Inch 12.7  (½”)
Liquid side 6.35 (¼”)
Refrigerant    Type R-22
Unit Dimension ( W x H x D ) Indoor mm 900x285x235
Outdoor 915x700x360
Packing Dimension ( W x H x D )  Indoor mm 1020x381x320
Outdoor 965x755x395
Weight                                               Indoor Kg 15
Outdoor 60
Stuffing Quantity ( 20’,40’ , 40’ HQ )   Set 66/142/155

Specification of 1.5ton wall type split AC – Reciprocating type

Model No     SM-SW18CR-T2
Cooling Capty   BTU/Hr 18000
    KW 5.25
Power Supply   V-Ph-Hz 220-V-50
Input Power    Watts 2050
Input Current   Amp 10
E.E.R   BTU/Hr.w, W/W 8.9
  2.61
Air Flow   M3/Hr 800
Noise Level Indoor db 43
Outdoor 55
Compressor Type     Reciprocating
Pipe Connection Sizes Gas side mm/Inch 12.7 ( ½”)
Liquid side 6.35 ( ¼”)
Refrigerant    Type R-22
Unit Dimension ( W x H x D ) Indoor mm 900x285x235
Outdoor 915x755x395
Packing Dimension ( W x H x D )  Indoor mm 1020x381x320
Outdoor 965x755x395
Weight                                               Indoor Kg 15
Outdoor 67
Stuffing Quantity ( 20’,40’ , 40’ HQ )   Set 68/140/155
